Draughtsman in Mechanical

Enroll Now

Course Objective

HVAC Design and drafting is one of the sub disciplines in MEP design which is required in design of Commercial Buildings, Airports, Shopping malls, Petrochemical complex, Refineries, pharmaceutical industry, Aerospace industry, Hospitals etc...This course will equip students with the knowledge and skills necessary to obtain entry-level employment in design and drafting areas of HVAC industry. The course content is designed as per industry requirements to meet the job roles of a HVAC Draughtsman which includes basic theory to implementation in construction site.

Who Should Attend?

Undergraduate/+2 Students /ITI Draughtsman/Diploma in Mechanical


Basic computer skills, AutoCAD 2D drafting


  • Module01

    • Introduction to MEP
    • Various MEP systems and functions
    • Introduction HVAC and Air-conditioning
  • Module02

    • HVAC equipment and functions
    • Introduction to heat load calculation
    • Drafting of HVAC systems

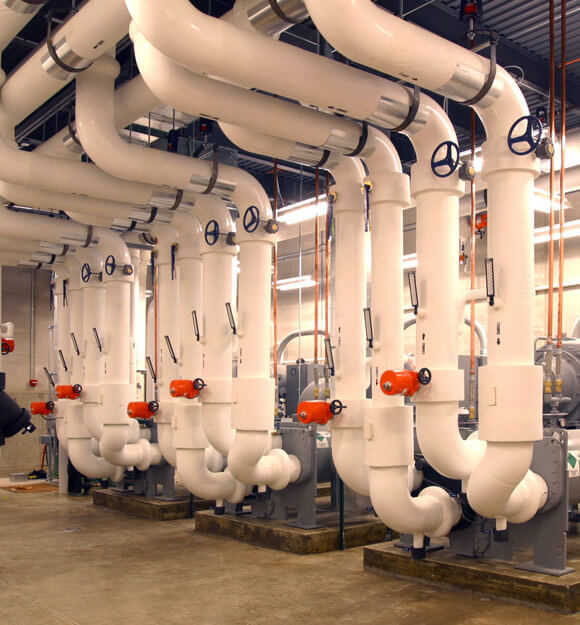

    • Drafting of chilled water systems
  • Module03

    • Setting up of drawing in layout
    • Coordination of MEP drawings
